SKU: 447713

Baja Designs | Ford / Toyota SAE Fog Light Kits - Amber

Vendor Baja Designs
Regular price $354.95
Sale price $354.95 Regular price
Sale Sold out
Unit price
/per
Shipping calculated at checkout.
This is a pre order item. We will ship it when it comes in stock.

Brand new for Baja Designs is our SAE-certified light. This light is based off of our Squadron series. While there are many visual characteristics that stayed the same the pattern, and circuitry is optimized in order to give our SAE light a street-legal punch!  We’ve put this light through rigorous tests to ensure that it would be an upgrade from most LED, HID, and Halogen factory fog lights. This kit includes vehicle-specific brackets for the listed vehicle(s) below.



Baja Designs Features:
Satisfaction Guarantee – 30 Day Money Back
Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService® – Replaceable Lenses And Optics
ClearView® – All The Light, Right Where You Need It.
MoistureBlock™ – Waterproof, Rain Proof, Submersible
CopperDrive® – Only LED Driven At 100%
5000K Daylight – Less Driver Fatigue, Natural Color









Specifications (Per Light):
Lumens: 2,480 Utilizing 4 Cree LEDs
Compliance Standard: SAE Standard J583
Wattage/Amps: 22W / 1.6A
Dimensions: 3.07" x 2.77" x 3.07"
Weight: 12 ounces
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Hard Anodized & Powder Coated Cast Aluminum
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof, Submersible to 9ft)
IK10 Compliant (Mechanical Impact Testing)




Application:

  •  Ford F-150 (2006-2014)
  • Toyota Tundra (2007-2013)
  • Tacoma (2005-2011)

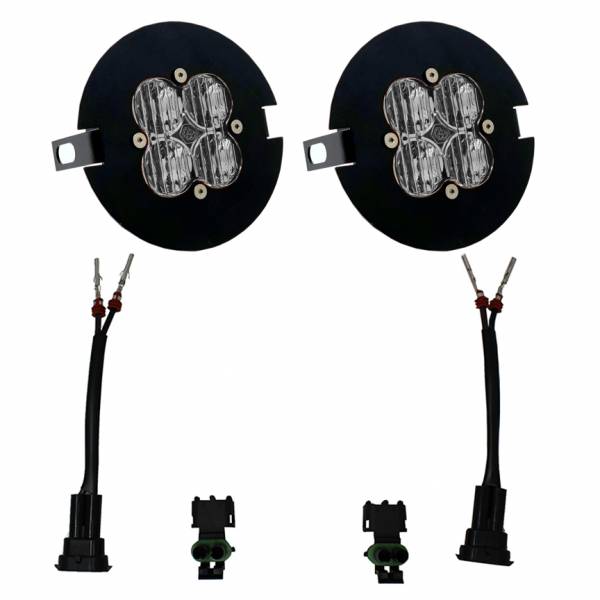

Included:

  • Brackets / Hardware
  • SAE Squadrons
  • Plug and Play Adapter



Patterns:

Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42°) and spot (9°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)

Spot: A longer and narrower 9° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)

Description

Brand new for Baja Designs is our SAE-certified light. This light is based off of our Squadron series. While there are many visual characteristics that stayed the same the pattern, and circuitry is optimized in order to give our SAE light a street-legal punch!  We’ve put this light through rigorous tests to ensure that it would be an upgrade from most LED, HID, and Halogen factory fog lights. This kit includes vehicle-specific brackets for the listed vehicle(s) below.



Baja Designs Features:
Satisfaction Guarantee – 30 Day Money Back
Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService® – Replaceable Lenses And Optics
ClearView® – All The Light, Right Where You Need It.
MoistureBlock™ – Waterproof, Rain Proof, Submersible
CopperDrive® – Only LED Driven At 100%
5000K Daylight – Less Driver Fatigue, Natural Color









Specifications (Per Light):
Lumens: 2,480 Utilizing 4 Cree LEDs
Compliance Standard: SAE Standard J583
Wattage/Amps: 22W / 1.6A
Dimensions: 3.07" x 2.77" x 3.07"
Weight: 12 ounces
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Hard Anodized & Powder Coated Cast Aluminum
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof, Submersible to 9ft)
IK10 Compliant (Mechanical Impact Testing)




Application:

  •  Ford F-150 (2006-2014)
  • Toyota Tundra (2007-2013)
  • Tacoma (2005-2011)



Included:

  • Brackets / Hardware
  • SAE Squadrons
  • Plug and Play Adapter



Patterns:

Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42°) and spot (9°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)

Spot: A longer and narrower 9° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
