The Ram Commuter 2.0 system is designed for people seeking the best on-road ride quality that don’t plan to off-road their vehicle beyond low-speed trail driving. Utilizing Carli SPEC 2.0″ Diameter, Internal Reservoir shocks, we’ve developed a tune that delivers all-around comfort and ride quality designed for on-road, in town, highway, and towing/hauling.
SKU: CS-D3-COM-CS-1319-D
Dodge 3" Commuter 2.0 System, Diesel, 2013+ 3500, Carli-SPEC
NOTE:
Does NOT Fit Models With OEM Factory Air Ride.
Progressive Leaf Springs Are HIGHLY Recommended.

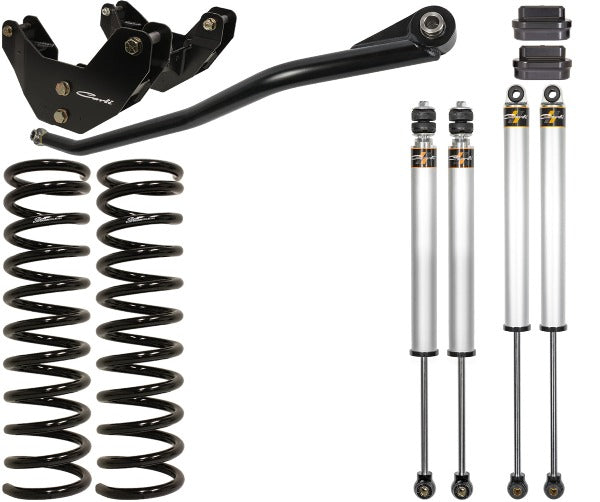

Base Kit Includes:

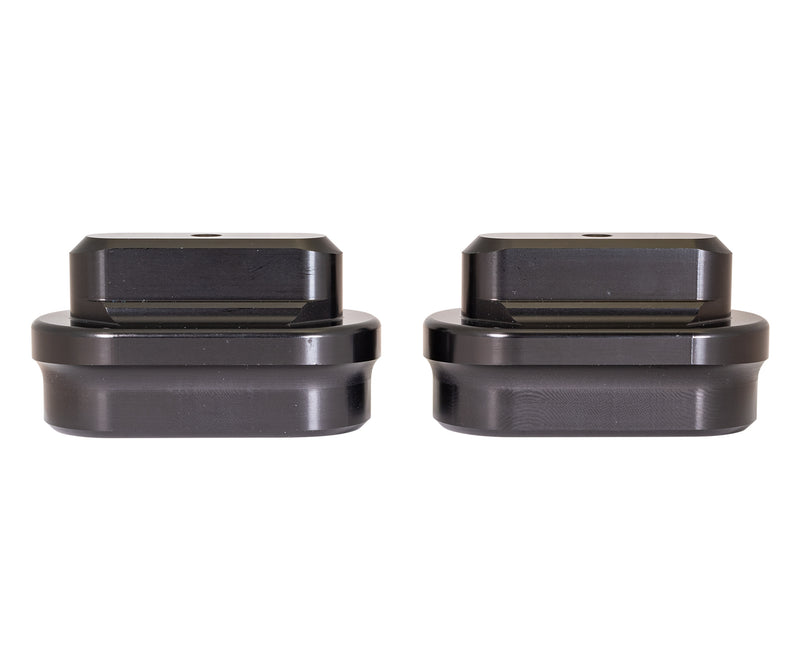

| CS-DFBD-1 | Front Bump Drops |
| CS-DLRC-14-D | Front Linear-Rate Coil Springs |

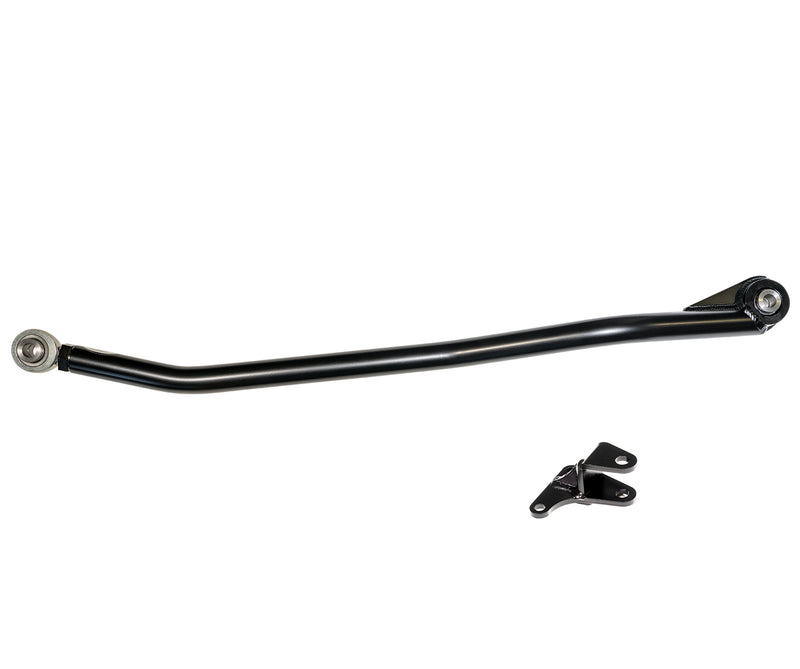

| CS-DATB-1419 | Front Track Bar |
| CS-DRAD-14 | Radius Arm Drops |
| CS-DCM-20-HK | Transmission Crossmember, Extended Hardware Kit |
| AS-D3SPKG-CS20IFP-A | Carli SPEC 2.0" Internal Reservoir (IFP) Shocks, Front and Rear |
The mono-tube, internal reservoir, Carli SPEC 2.0 boasts 6063 Aluminum construction, anodized body for corrosion resistance, 5/8″ hardened steel chrome plated shaft, full serviceability & rebuild ability and are built with piece bushings in the 6061 billet rod-ends. These shocks are spec’d with a premium 5WT oil to balance lubricity, consistent damping and the widest available range in temperature variation. We back these with a 1-year warranty, serviced by Carli.
The Details: Your truck will sit 3”-3.5” higher in the front (cab configuration dependent) with 50% more suspension travel than the factory platform thanks to the taller, lighter rate coil springs. The rear is lifted 1”-2” via the customer’s choice of a Progressive Add-A-Pack or Full Progressive Leaf Pack. The Progressive Add-A-Pack maintains load capacity and replaces the factory overload with a 5-Leaf, progressive pack that changes the final rate of the spring pack keeping the rear planted while increasing traction and predictability. The optional Full Progressive Leaf Pack replaces the entire factory leaf spring assembly increasing travel and drastically increasing comfort (when compared to when compared to the factory springs or add-a-pack) throughout the entire usable travel stroke reducing payload to a “light” 3/4-ton spec. This can be brought back to factory capacity with the use of Carli Long Travel Airbags to achieve the best ride and adjustable rear load capacity!
When pairing added down-travel with the taller ride height, the position of the factory, front sway bar will need to be altered as well. For this, we offer two options; Billet Sway Bar Drop Brackets or the replacement Torsion Sway Bar. The Billet Drop Blocks shift the sway bar down and forward to ensure the factory end links cycle properly throughout the entire extended travel range. Carli’s optional Torsion sway bar removes the entire factory sway bar assembly replacing it with a torsion bar supported by fabricated drop brackets and delrin bushings. Fabricated sway bar arms and dual 5/8” FK heim end links round off the package. This is the single best bang for the buck, ride-quality upgrade offered by Carli Suspension.
When lifting the front end of a straight axle truck, the front axle is pulled off-center unless the proper linkages are addressed. Three inches of front lift equates to an axle shifted toward the driver’s side ¾” and, in the radius arm equipped Rams, lightened caster and slight rearward axle shift. This system includes an Adjustable Track Bar to push the axle back toward the passenger side and provide a stronger link with less deflection for the lifted application. We also include Radius Arm Drop Brackets to recenter your caster adjustment and shift the axle forward to its new center of travel. Everything is included to support flawless operation of all components.
Wheel and Tire: This system will fit up to a 37” tire when utilizing wheels that are no more than 9” wide with 5.75-6” of backspacing. A 12.5” wide should fit with no rubbing on the factory radius arm and only minor trimming required, while a 13.5” will require more trimming and slightly more offset to fit properly. 35” tires will fit with VERY minimal, if any trimming. We Recommend running an 18” diameter wheel for optimal ride quality (more rubber = better small bump compliance) on a 35”-37” E-rated tire running 45psi front, 40psi rear when unloaded.
