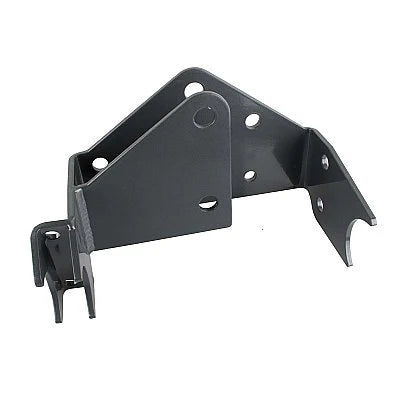

Heavy duty front track bar bracket for the Jeep JK.
Features
- Compatible with 3.0" and taller lifts
- Heavy duty front track bar bracket for the Jeep JK
- This bracket raises the vehicle's axle side track bar mount by 3.0"
- The vehicle's rollcenter is raised, reducing body roll and dramatically improving overall handling
- Special bolt-on design strengthens the factory mount that is prone to failure
- Laser cut from 3/16" steel & 2 stage powdercoat finish for maximum strength and durability
- The bracket relocates the factory or aftermarket steering stabilizer up and out of harms way
- Suspension components feature an abrasion-resistant powder coat finish for maximum durability and corrosion resistance
Stabilizer Relocation:
XP107 - Jeep JK Steering Stabilizer Relocation Kit
XP300 - Stabilizer Relocation Bolt at Trackbar
FITMENT NOTES:
-
Requires use of minimum 3" bump stop spacer
-
Requires use of steering drag link flip kit
- 8055 Track Bar Bracket is not recommended for hydro assist applications.
- If using a front adjustable track bar make sure track bar can be collapsed far enough to center axle. Track bar will need to be close to stock length once relocated.
- Warranties are through Synergy MFG
Product Details
Heavy duty front track bar bracket for the Jeep JK.
Features
- Compatible with 3.0" and taller lifts
- Heavy duty front track bar bracket for the Jeep JK
- This bracket raises the vehicle's axle side track bar mount by 3.0"
- The vehicle's rollcenter is raised, reducing body roll and dramatically improving overall handling
- Special bolt-on design strengthens the factory mount that is prone to failure
- Laser cut from 3/16" steel & 2 stage powdercoat finish for maximum strength and durability
- The bracket relocates the factory or aftermarket steering stabilizer up and out of harms way
- Suspension components feature an abrasion-resistant powder coat finish for maximum durability and corrosion resistance
Stabilizer Relocation:
XP107 - Jeep JK Steering Stabilizer Relocation Kit
XP300 - Stabilizer Relocation Bolt at Trackbar
FITMENT NOTES:
-
Requires use of minimum 3" bump stop spacer
-
Requires use of steering drag link flip kit
- 8055 Track Bar Bracket is not recommended for hydro assist applications.
- If using a front adjustable track bar make sure track bar can be collapsed far enough to center axle. Track bar will need to be close to stock length once relocated.
- Warranties are through Synergy MFG
