PacBrake | Onboard Air Kit with 2 1 / 2 Gallon Air tank W/ Air Compressor Air Tank Fittings Pressure Switch Relay Electrical Connectors Required Accessories

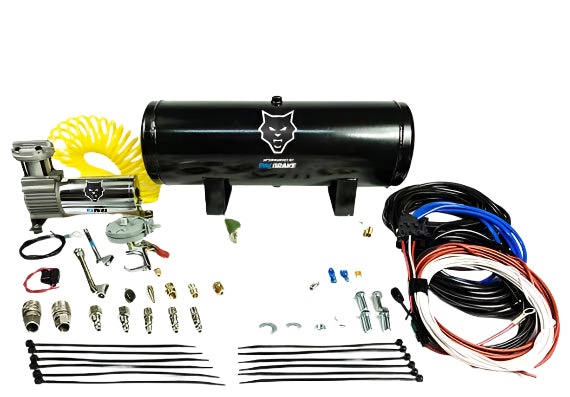

Onboard Air Kit with 2 1/2 Gallon Air tank consists of air compressor, air tank, fittings, pressure switch, relay (s), electrical connectors and required accessories

Each Onboard Air System comes complete with:

• HP325 Series 12V DC compressor (Part Number HP10143)
• 2 1/2 Gallon air tank (Part Number HP10013)
• Fittings
• Pressure switch
• Relay(s)

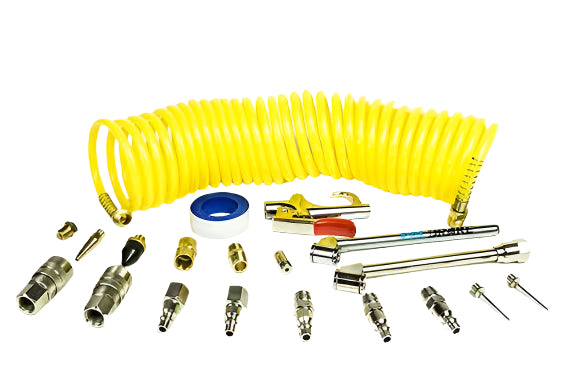

• Electrical connectors and all applicable accessories

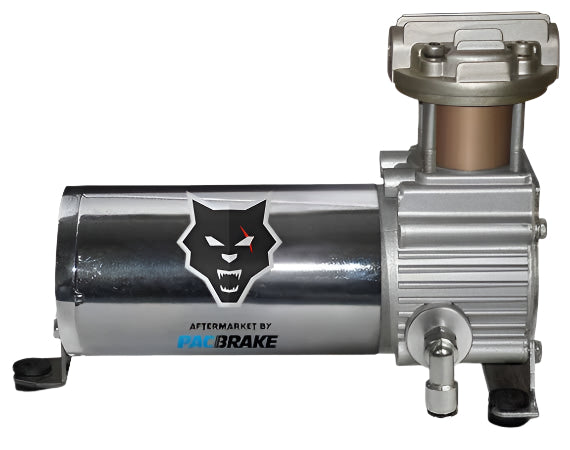

Compressor Specifications

• (Part Number HP10143)-12 VDC
• 100 percent (1 Hour at 100 PSI) duty cycle
• 1/4 HP
• Size is 8.7 inch x 4 inch x 6.2 inch (LxWxH) or 221 mm x 102 mm x 158 mm
• Weight is 5.5 lbs

Compressor features a copper wire wound permanent magnet motor; oil-less design; sealed bearings; PTFE piston ring; cast aluminum cylinder head; hard anodized aluminum cylinder and aluminum sleeve.

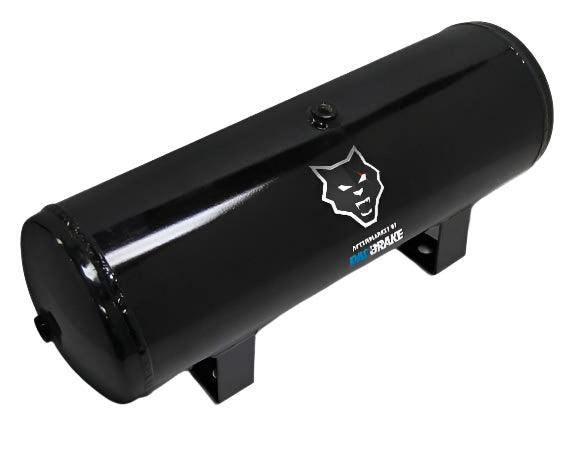

Air Tank Specifications

• (HP10013)-2 1/2 gallon capacity
• 5-3/8' NPT ports
• Rust inhibitor applied to inside of tank
• Max working pressure 150 PSI
• Size is 21.0 inch x 6.9 inch x 8.9 inch (LxWxH)
• Weight is 9.8 lbs
• Welded on mounting brackets.
