SKU: CS-F45-PF-17 - Pathfinder System
5.5" Lift - 2020-2022 F250/350 4x4 Diesel, Base Kit
4.5" Lift - 2017-2019 F250/350 4x4 Diesel, Base Kit

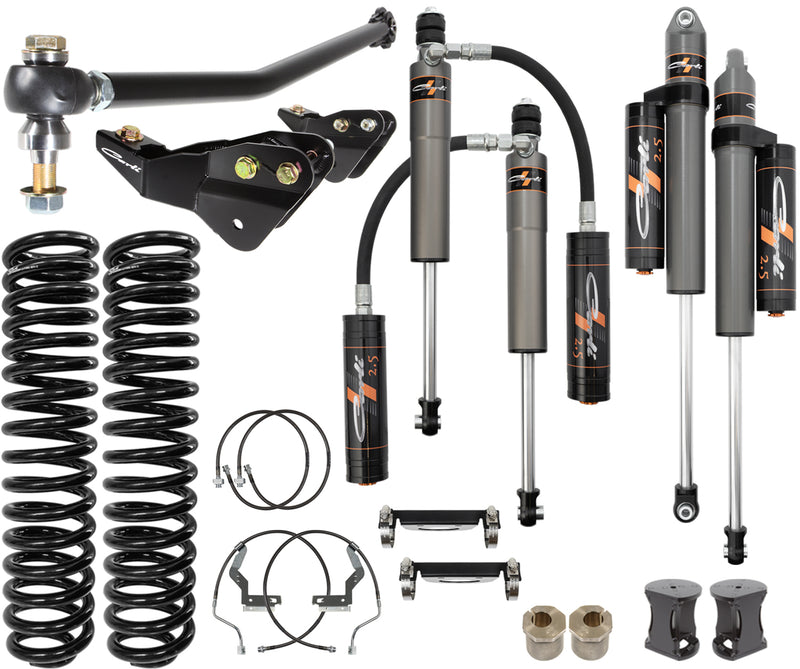

Base Kit Includes:

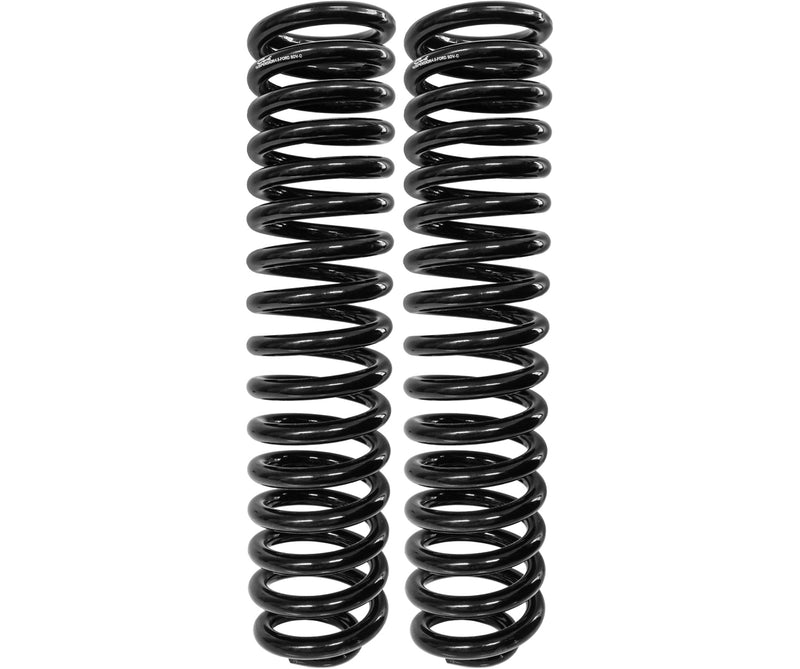

| CS-FMRC-05 | Multi-Rate Coils |
| CS-F45SPKG-CS25RR-A | Carli Custom Tuned Carli-SPEC 2.5" Remote Reservoir Shocks & Reservoir Mounts |

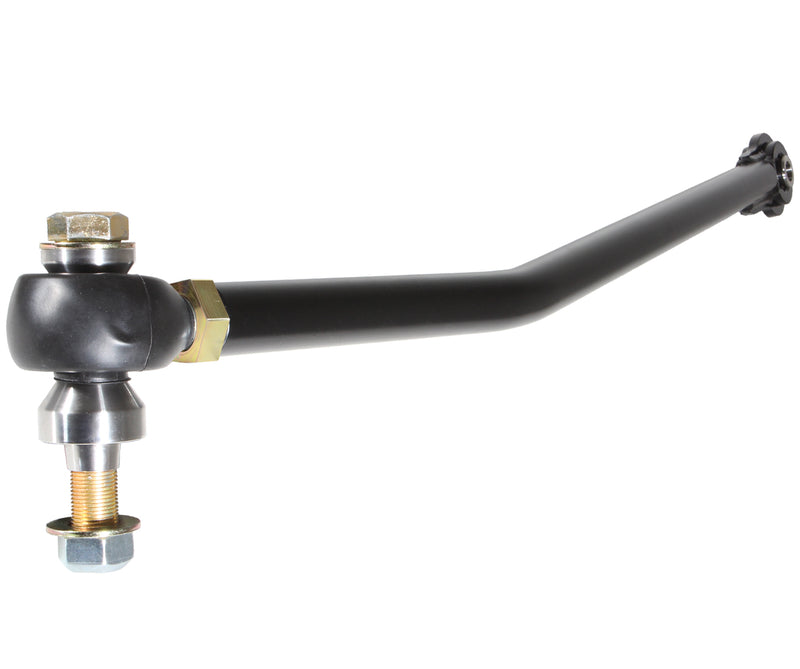

| CS-FATB-17 | Track Bar |

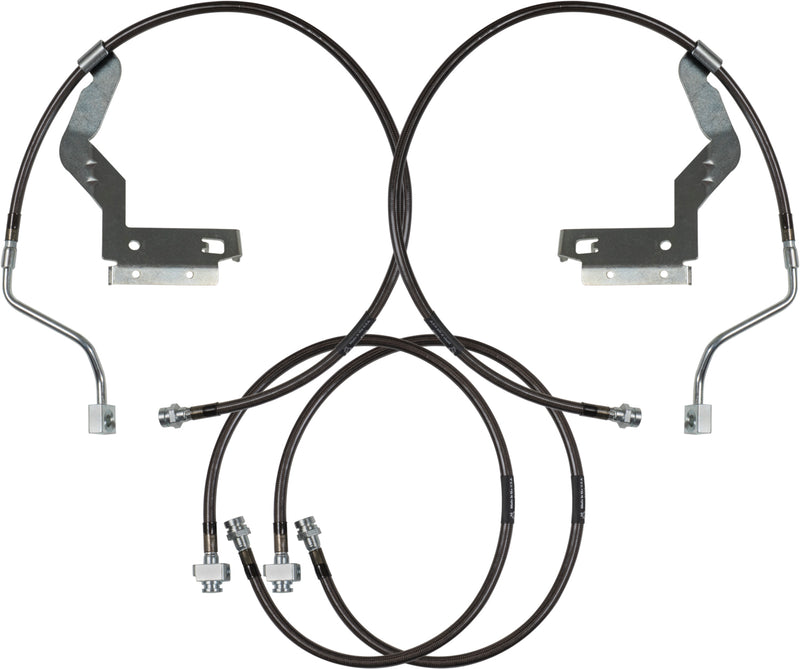

| CS-FORDBBL-45-17 | Brake Lines |

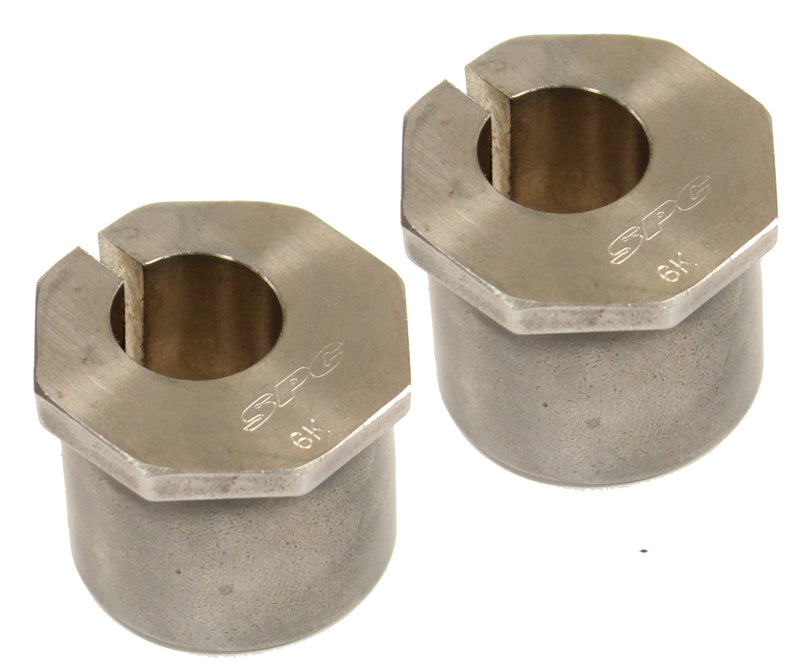

| CS-FCASTERSHIM-4.5 | 1° Caster Shims |

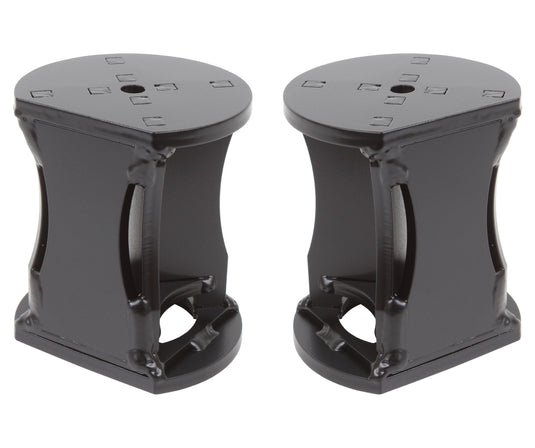

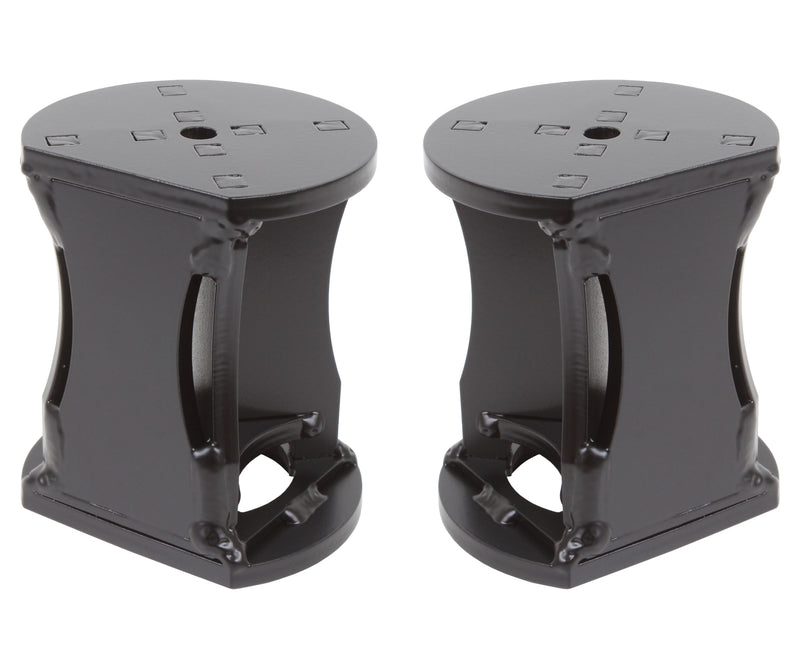

| CS-FBDF-4.5-17 | High Clearance Bump Stop Drops, Front |

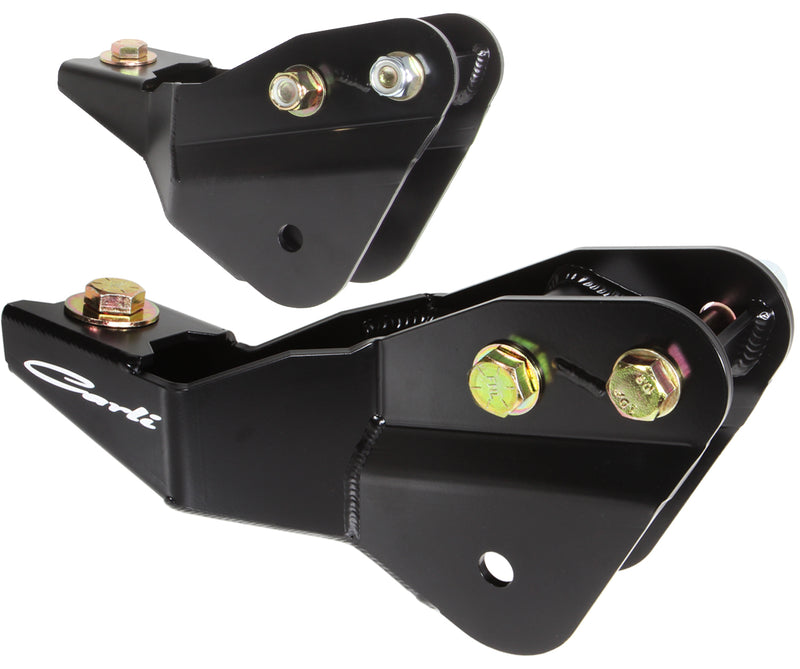

| CS-FRAD-17 | Radius Arm Drops |
Nestled between the Backcountry and Pintop, the Pathfinder system is built for Super Duty owners prioritizing on-road comfort and off-road confidence. Akin to a Backcountry on pavement and only slightly off-pace the Pintop’s dirt performance, the Pathfinder removes all strain from your daily drive while inspiring you to venture beyond the tarmac.
This system delivers a controlled and predictable ride for light to moderate off-road use, though it won’t stay as composed as the Pintop over aggressive, high-speed terrain. On the road, however, the Pathfinder stands out. Small and medium imperfections are absorbed with ease, creating a supple, comfortable ride that doesn’t require an aggressive driving style to feel its benefits. It’s the perfect choice for drivers who value daily comfort, but want their suspension to come alive when venturing off the pavement.

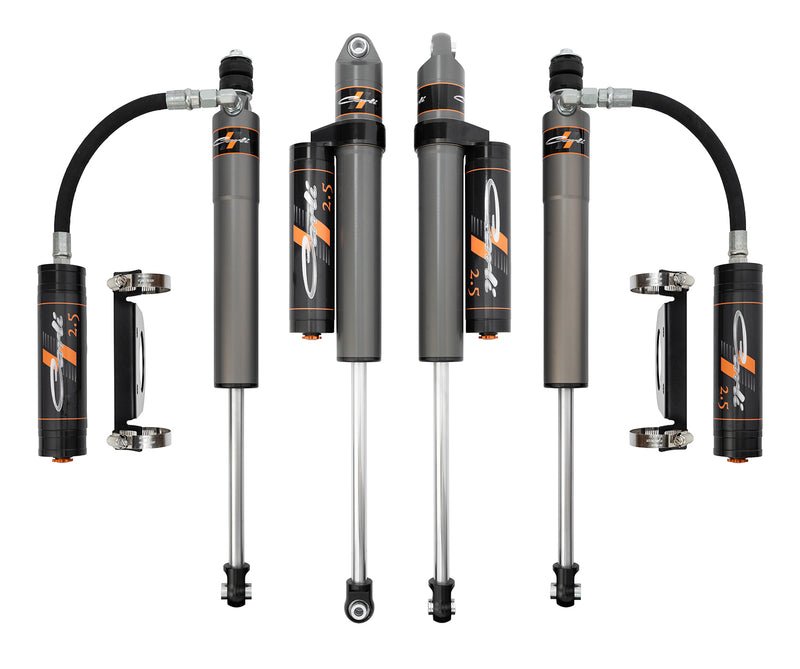

The Pathfinder is equipped with Carli-SPEC 2.5” aluminum-bodied shocks finished with a hard-anodized coating for superior corrosion and scratch resistance. All billet components are black-anodized, creating a sleek, premium look straight out of the box—an aesthetic that previously cost customers over $1,200 in custom color upgrades on our King kits. Inside, we’ve spec’d a high-performance red shock oil designed to resist heat and fade, even under spirited driving, ensuring consistent damping and long-term reliability. The Pathfinder delivers unmatched on-road composure and comfort for which many are happy to sacrifice the extremes of off-road capability they’d find in our King-Shock offerings.
Super Duty owners will find the Pathfinder to be the perfect middle ground. Its 2.5” diameter shock bodies provide a significant boost in oil volume—55% more piston surface area than a 2.0”—which improves heat management and extends rebuild intervals. While the Pintop excels in aggressive off-road driving, the Pathfinder is happiest soaking up rough roads and cruising comfortably without requiring more skinny-pedal to feel the damping.
This system is the result of over a year of development, tuning, and testing to deliver exactly what customers felt was missing: a premium 2.5” shock package that’s affordable, aesthetically premium, on-road focused, and build to withstand the rigors of HD off-road use.
The truck will sit 4.5” higher in the front and have more wheel travel thanks to the taller, Progressive Rate Coil Springs. Radius Arm Drop Brackets reset the pivot point and keep the travel linear for the best ride while the Sway Bar Link & Drop Brackets Kit resets the sway bar engagement point. The End Link Kit is listed as an “option”, but it’s necessary to run. We plan to release a Torsion Sway Bar in the near future so the end-link options were pulled from the base kit and made selectable in anticipation of the second option. Bump Stop Drops protect the shocks from over-compressing, the Adjustable Track Bar centers the front axle and Stainless Brake Lines firm up braking and ensure there is enough line for the newfound travel. To round off the front end, we include Caster Shims to tighten the steering.
The rear can be outfitted with a replacement Full Progressive Spring Pack (reduces capacity to a “light” ¾-ton) or factory leaf-pack modifying Progressive Add-a-Pack (maintains factory payload capacity and pairs with the included Carli Fabricated 2” block). This is where the F250 and F350 are a bit different. Since 2008, the main spring packs on these two trucks is different; the F250 has a lighter rate spring pack than its 350 counterpart. The F250 Add-a-Pack equipped systems are a nice improvement over stock; the F350 with the Add-a-Pack is still very stiff in the rear as the main pack doesn’t move much unless loaded. We recommend the Full Replacement Leaf Spring packs for both trucks but especially the F350 given the super-stiff factory springs. If capacity is a concern, the Full Progressive Leaf Springs can be supplemented back to the factory capacity of a SRW F350 with the addition of our Long-Travel Airbags. The Full Progressive Leaf Spring Pack will shift the axle slightly forward in the wheel well to ensure maximum tire clearance for a 37” M/T at full compression.
