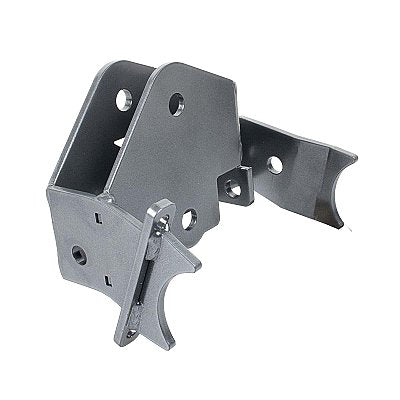

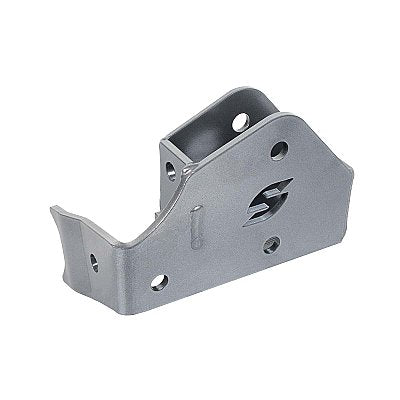

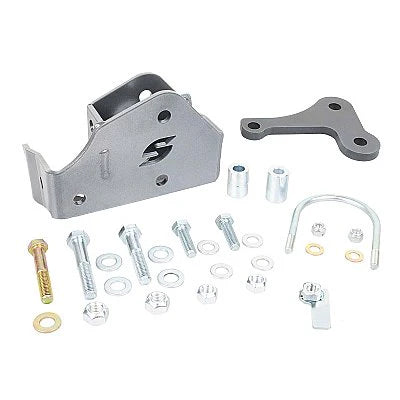

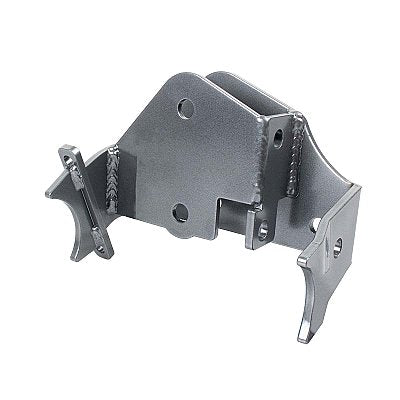

The Synergy Jeep JL/JLU/JT Front Track Bar relocation bracket is the definitive fix for a lifted JL or JT. When lifting beyond 2” it becomes critical to correct several important areas of the suspension geometry. By raising the track bar mount at the axle side we can simultaneously re-center the axle under the vehicle and raise the roll center height to improve the stability of the lifted Jeep. When we flatten out the angles of the drag link and track bar at ride height, minimize axle shift during suspension travel.
What It Fits:
Jeep JL/JLU Wrangler
Jeep JT Gladiator
FITMENT NOTES:
- MUST run drag link in high steer configuration, flipped above knuckle, to use this bracket.
- Minimum of 3” bump stop spacing required.
- Maximum 4.75” wheel backspacing required to clear drag link in flipped position.
NOTES:
- Warranties are covered through Synergy
- SYN-8855-11
