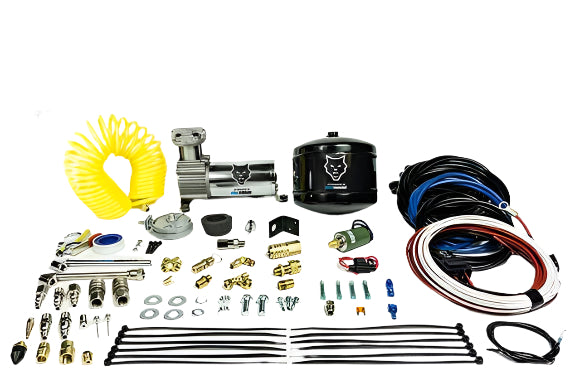

Onboard Air Kit with 1/2 Gallon Air tank consists of air compressor, air tank, fittings, pressure switch, relay (s), electrical connectors and required accessories.
Each Onboard Air System comes complete with
- HP325 Series 12V DC compressor (Part Number HP10143)
- 1/2 Gallon air tank (Part Number C11940)
- Fittings, pressure switch, relay(s)

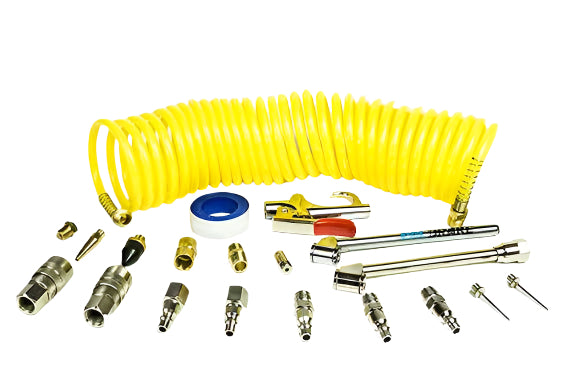

- Electrical connectors and all applicable accessories

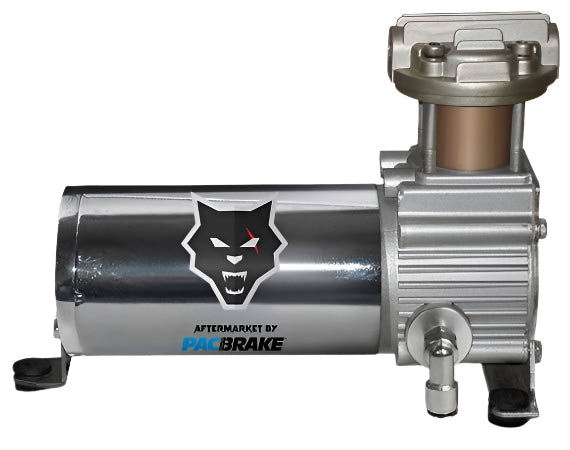

Compressor features
- Copper wire wound permanent magnet motor
- Oil-less design; sealed bearings
- PTFE piston ring
- Cast aluminum cylinder head
- Hard anodized aluminum cylinder and aluminum sleeve
Compressor Specifications
- Part Number HP10143 -12 VDC
- 100 percent (1 Hour at 100 PSI) duty cycle
- 1/4 HP
- Size is 8.7 inch x 4 inch x 6.2 inch (LxWxH) or 221 mm x 102 mm x 158 mm

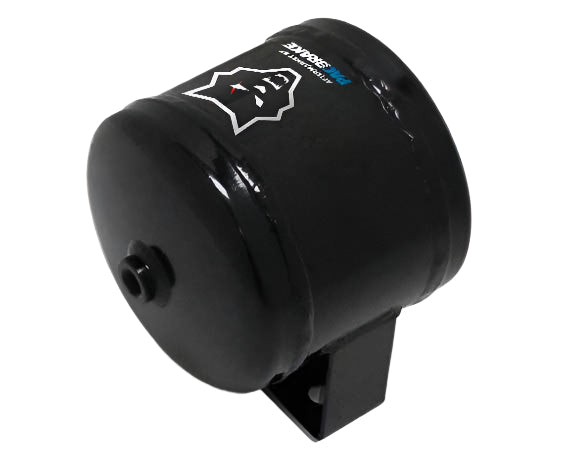

- Weight is 5.5 lbs. Air Tank Specifications (C11940)-0.5 gallon capacity
- 2-1/4 inch NPT ports
- Rust inhibitor applied to inside of tank
- Max working pressure 150 PSI
- Size is 6.4 inch x 5.5 inch x 6.5 inch (LxWxH)
- Weight is 3.4 lbs
- Welded on mounting brackets
