Premium In-cab Control Kit for simultaneous air spring activation consist of a HP325 compressor,air spring dash switches, pre-built harnesses, fittings, fasteners and everything required for a complete install.
This in-cab control kit comes with everything you need to operate your air springs (or other pneumatic accessories) right from the driver's seat. Various dash activation switch kits are available depending on your air spring operation requirements. Simultaneous inflation is simply one switch that inflates/deflates both air springs together at the same time.
The kit consists of:

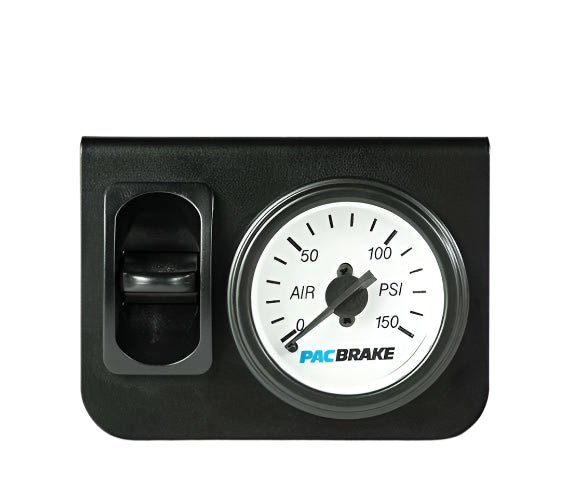

- HP325 compressor,air spring dash switches for independent activation
- Pre-built harnesses
- Fittings, fasteners and everything required for a complete install

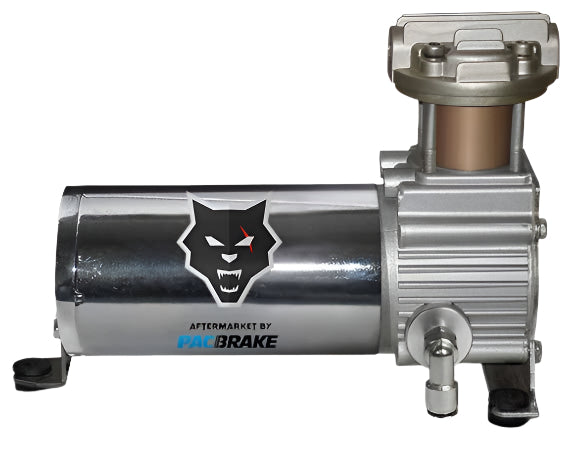

Air Compressor Specifications:
- 12 VDC 100 percent duty cycle (1 Hour at 100 PSI)
- 1.2 CFM
- 150 PSI max operating pressure
- Draws 18 amps
- Air tank options-1/2 gallon air tank (HP10053) or 2 1/2 gallon air tank (HP10050).
Note This is a complete kit with onboard air. If adding an air tank, a pressure switch is required; HP10110 is for 105-135 PSI and HP10111 is for 85-105 PSI.
