With the ICON Stage 2 suspension system on and off-road performance is significantly improved with 2.5 VS Series coilovers and 2.0 Aluminum Series rear shocks,that feature ICON engineered coil springs, vehicle-specific shock valving, FK Rod End bearings, and high-quality CNC-machined components for superior damping and control. The 2.5 VS Series coilovers are height adjustable from 0-3” of lift, allowing the use of larger, more aggressive wheel and tire combinations. Fully serviceable shock absorbers mean that these components can be rebuilt or re-valved as necessary, providing a long service life and the ability to customize the ride quality for unique vehicle setups.
FEATURES & BENEFITS
- Increased wheel travel and ride quality over stock
- CNC machined 6061 aircraft-grade aluminum components
- Tubular steel upper control arms feature ICON Delta Joints
- Bolt-on design makes for straightforward install
- Decreased body roll
- Vehicle-specific tuned front and rear shocks provide superior damping and control
- Coilovers are adjustable from 0-3" of lift height
- ICON engineered rear coils provide 1" of lift and improved performance
- Shocks are fully rebuildable and revalveable
- Corrosion resistant CAD plated coilover shock body with 7/8" shaft
- FK Rod End bearings for extended longevity and minimal deflection
TECH INFO
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 4.75” Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5.00” Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5.00” Backspace / 0mm Offset
- Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
- APPLICATION NOTE #18: THESE SYSTEMS ARE TO BE USED WITH AFTERMARKET UPPER CONTROL ARMS ONLY.
- APPLICATION NOTE #47: 700LB/IN EXPEDITION COIL AVAILABLE FOR HEAVIER EQUIPPED VEHICLES
- APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
- APPLICATION NOTE #111: BUMP STOP SPACER KIT AVAILABLE THAT CAN BE INSTALLED TO INCREASE THREADS SHOWING BEYOND MAX RECOMMENDATION.
- Ships in multiple boxes

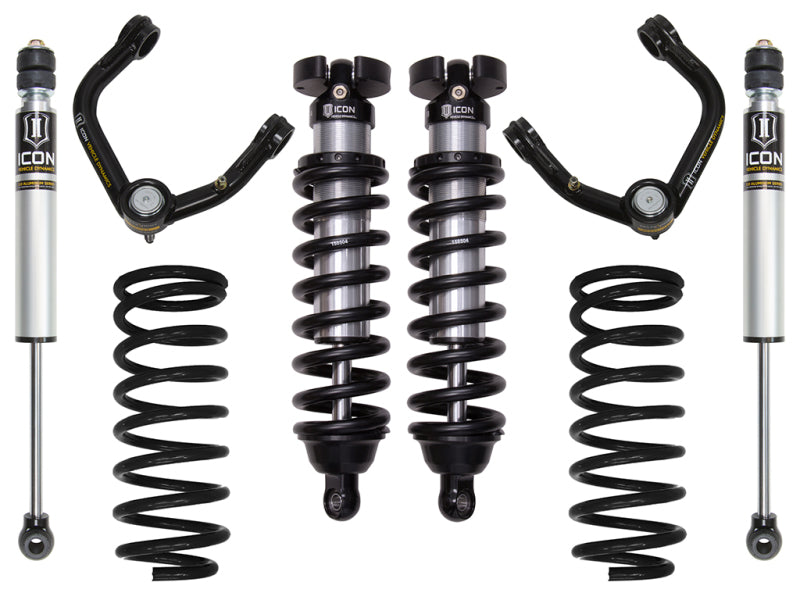

SYSTEM COMPONENTS
- 58615 (QTY: 1) | 96-04 TACOMA/96-02 4RUNNER EXT TRAVEL 2.5 VS IR COILOVER KIT
- 58400DJ (QTY: 1) | 96-04 TACOMA/96-02 4RNR TUBULAR UCA DJ KIT
- 53015 (QTY: 1) | 96-02 4RUNNER 1" REAR COIL SPRING KIT
- 56514 (QTY: 2) | 96-02 4RUNNER 0-2" REAR 2.0 VS NR
