FITMENT:
-

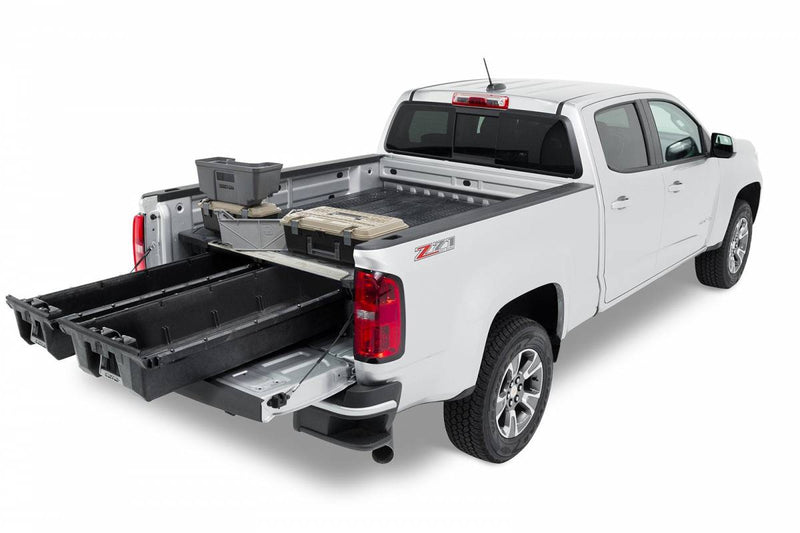

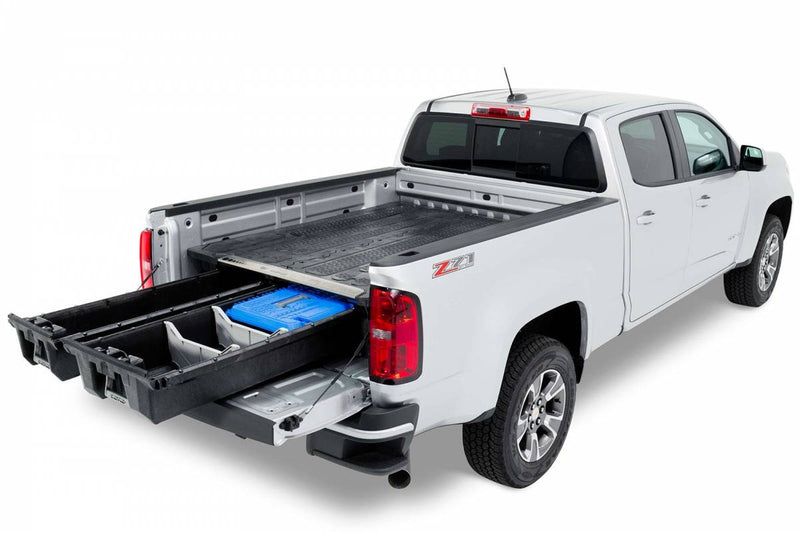

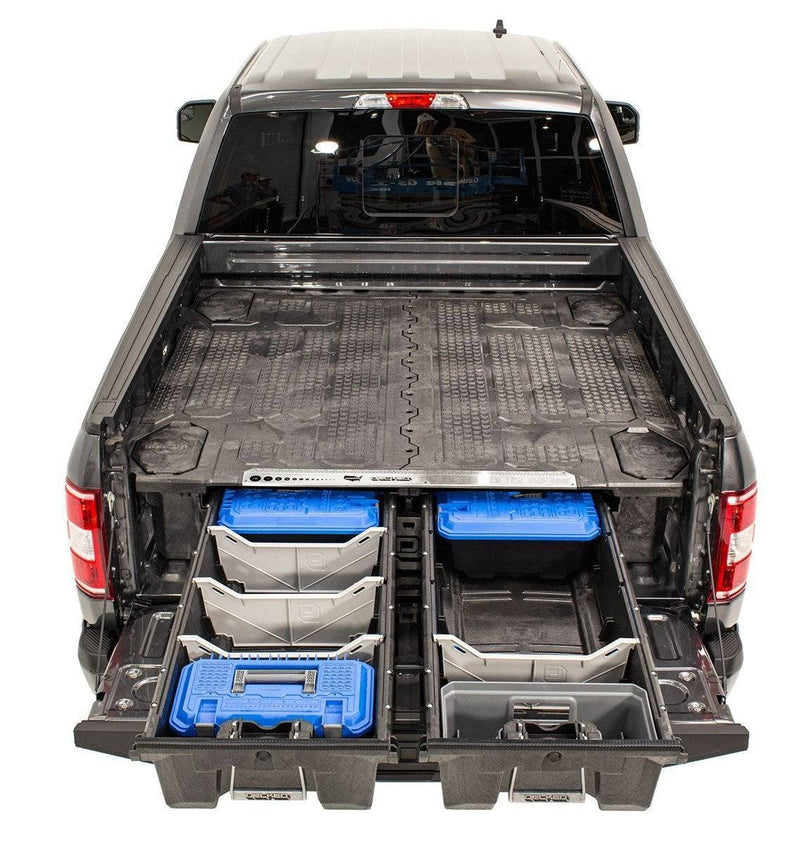

This DECKED truck bed organizer fits a Chevrolet Colorado pickup truck with a bed length of 5'2" manufactured from 2015 to current. It takes a short midsize DECKED system.
-
Because the short midsize system is 56", there will be about 4" of empty space between the tailgate end of the DECKED System and the tailgate. DECKED drawers require 4" to be opened, but the first 5 1/2" of the drawer are taken up by the handle cavity and drawer taper. So, it is nearly impossible to remove anything from the drawers with the tailgate closed.
FEATURES
- HIGH DENSITY POLYETHYLENE: Impervious to extreme UV light and temperatures. Born for harsh environments.

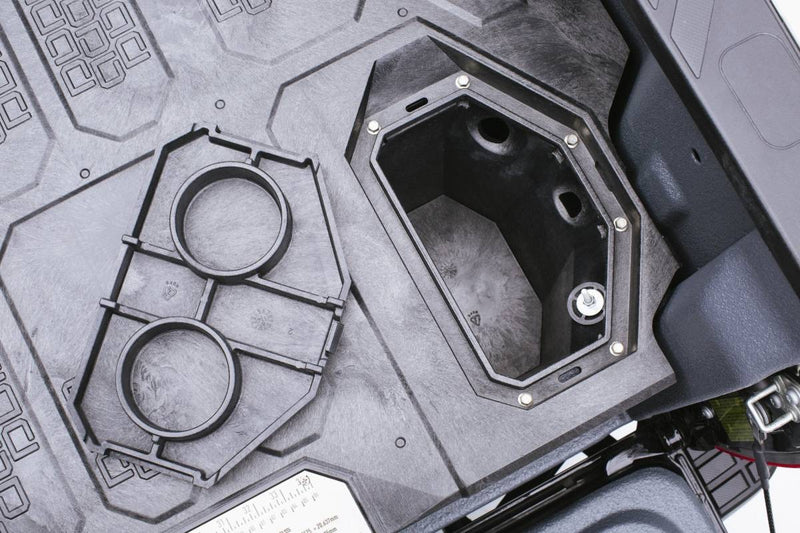

- AMMO CAN STORAGE: Extra compartments by the wheel-wells to maximize your storage options.

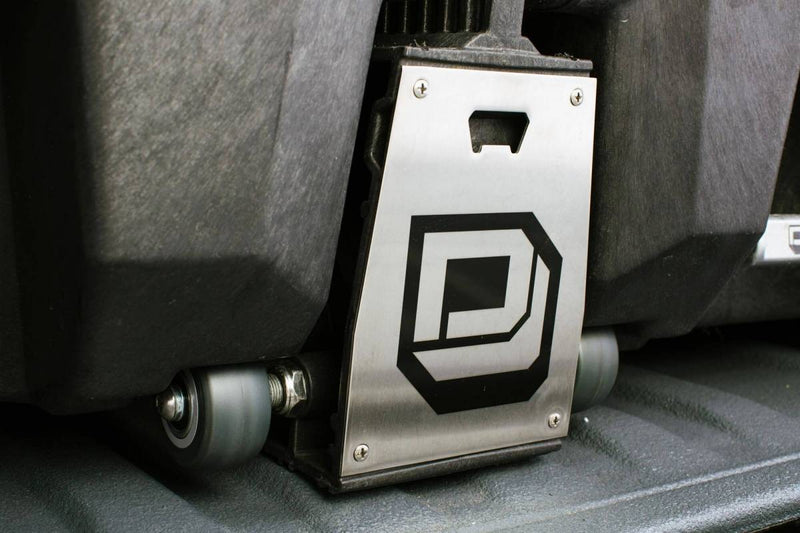

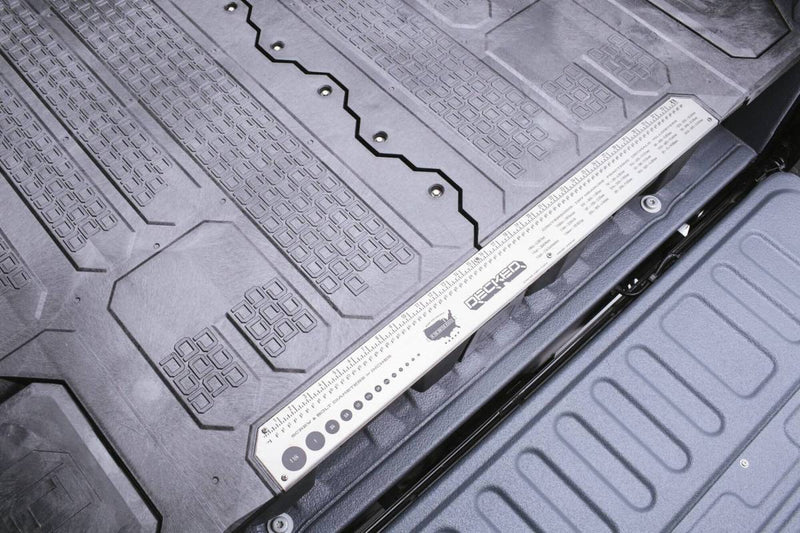

- RULER & BOTTLE OPENER: Handy fine finishes because we care. Treated with robust corrosion inhibitors.

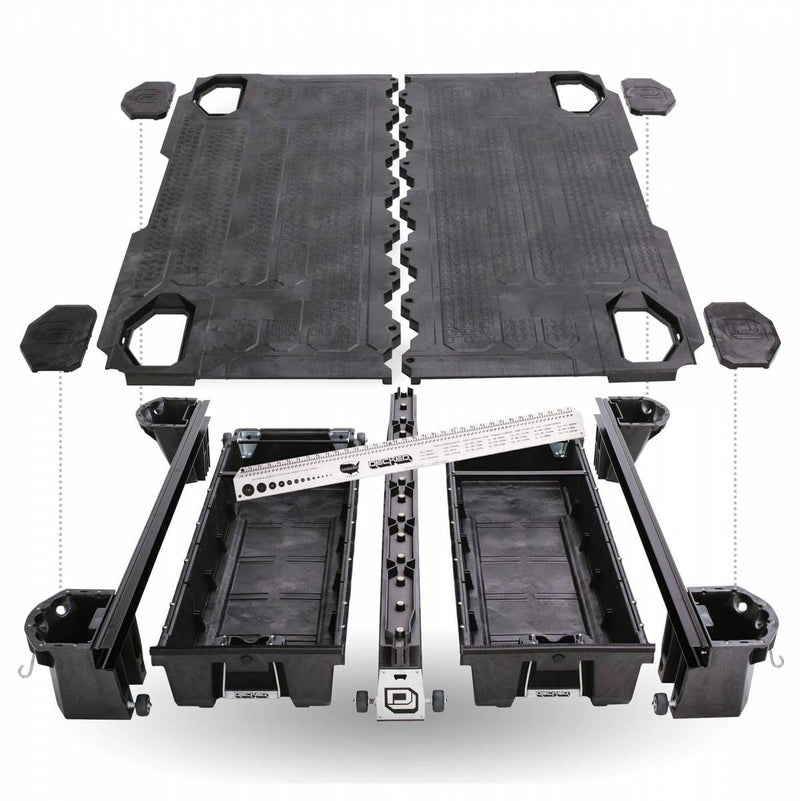

- STEEL SUBFRAME: Galvanized steel skeleton in-molded to HDPE = Unmatched strength-to-weight ration of 10:1.
- HANDLE: So easy to operate, even a bear could do it... with gloves on.
- ZERO TO MINIMAL DRILLING: J-hooks attach to bed tie downs. Easy to assemble, install or remove.
- FITS LIKE A GLOVE: Custom shaped to fit your bed. No loss of usable space.
- WHEELS: Urethane, sealed bearing drawer wheels. Roll. Like. Butter.
- RECYCLED MATERIALS: Made from 100% recycled HDPE and recycled American Steel.
NOTES:
- Drawers are full bed-length drawers, but do not fully extend. Max midsize short drawer extension: 36” for reasons related to physics.
- BED RACKS: Works with Leitner Design bed racks and many other models of bed racks.
- LINERS: Works with spray-in bed liner, but NOT a drop-in plastic bed liner.
- BEDRUG: Works with BedRug mat, but NOT with a BedRug full liner.
- WARRANTY: We offer a limited lifetime warranty on all DECKED products.
- SHIPPING POLICY: Shipping takes 7-14 business days.
INCLUDED:

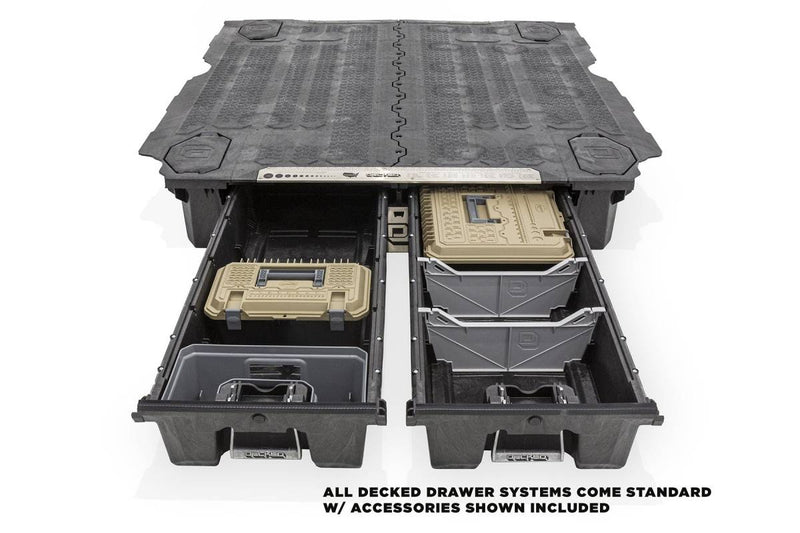

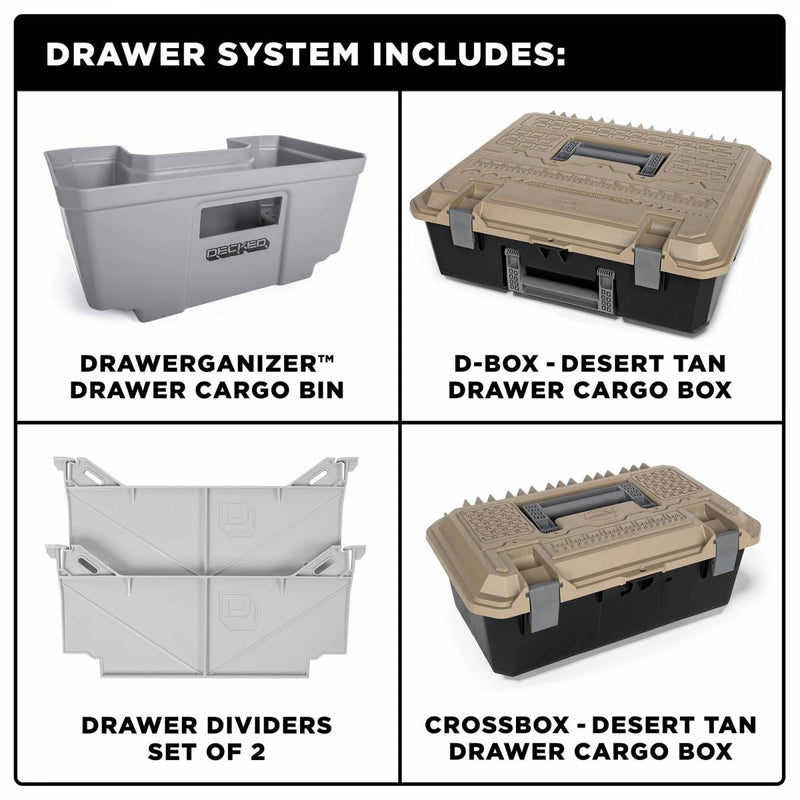

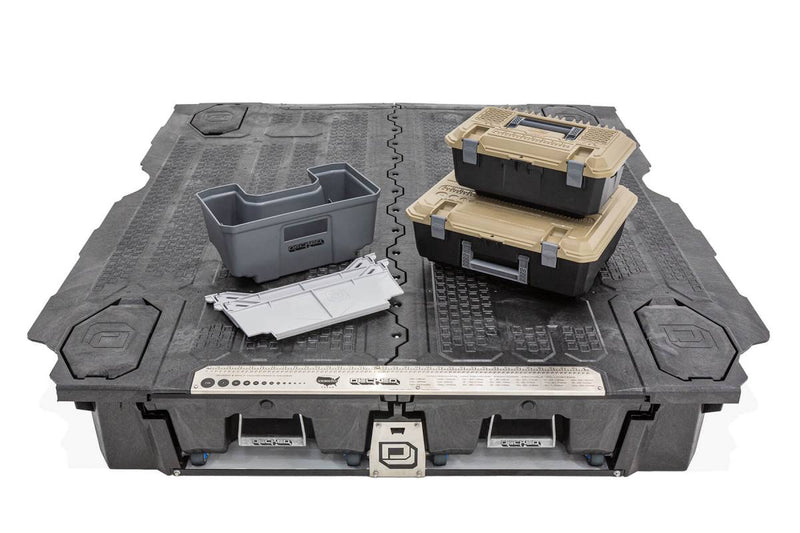

All DECKED Drawer Systems come standard with the following accessories included at no extra charge: (1) D-Box Desert Tan, (1) Crossbox Desert Tan, (1) DRAWERGANIZER™, Set of (2) Wide Drawer Dividers (Narrow Drawer Dividers can be purchased separately).
SYSTEM DIMENSIONS:
- 2000 lb payload evenly distributed
200 lb payload per drawer - SYSTEM DIMENSIONS:
- TOTAL WEIGHT: ~205 lbs
- LENGTH: 56"
- WIDTH: 56"-64"
- HEIGHT: 12"
- SHIPPING DIMS: 222 lbs, 68"x 39" x 23"
NARROW DRAWER DIMENSIONS:
- LENGTH (top of drawer): 53”
- LENGTH (bottom of drawer): 47.3”
- WIDTH (top of drawer): 11”
- WIDTH (bottom of drawer): 9.75”
- HEIGHT: 8.5”
- EXTENSION (each): 36"
WIDE DRAWER DIMENSIONS:
- LENGTH (top of drawer): 53”
- LENGTH (bottom of drawer): 47.3”
- WIDTH (top of drawer): 18”
- WIDTH (bottom of drawer): 16.75”
- HEIGHT: 8.5”
- EXTENSION (each): 36"
